Carefully lift the internal glass (Fig. 3c): the two

blocks will prevent the door from closing (if the

blocks are not turned fully, removing the glass will

cause immediate closing of the door).



To remove the glass in between, slide out the two

side gaskets (Fig. 3d) and then lift out the glass

(Fig. 3e).



After carrying out the cleaning operations, refit

the intermediate glass (Fig. 3f) (the correct

position is indicated by the wording „TEMPERED

GLASS“ which must be perfectly legible) by

inserting it carefully into the relevant grooves

located at the top of the door and pushing it all

the way to the end of the groove.



Then replace both gaskets (Fig. 3g), taking

extra care to ensure they are inserted as far as

possible, until they come into contact with the

upper edge of the door.



Finally, refit the internal glass (Fig. 3h) and turn

the two glass retaining blocks back to their

original locking position.

Never try closing the door when only one

or both blocks have partially or completely

freed the internal glass. After cleaning,

always remember to turn both blocks before closing

the door.

Removing the oven door (Fig. 4)

To facilitate oven cleaning, the oven door can be

removed by operating on the hinges as follows:



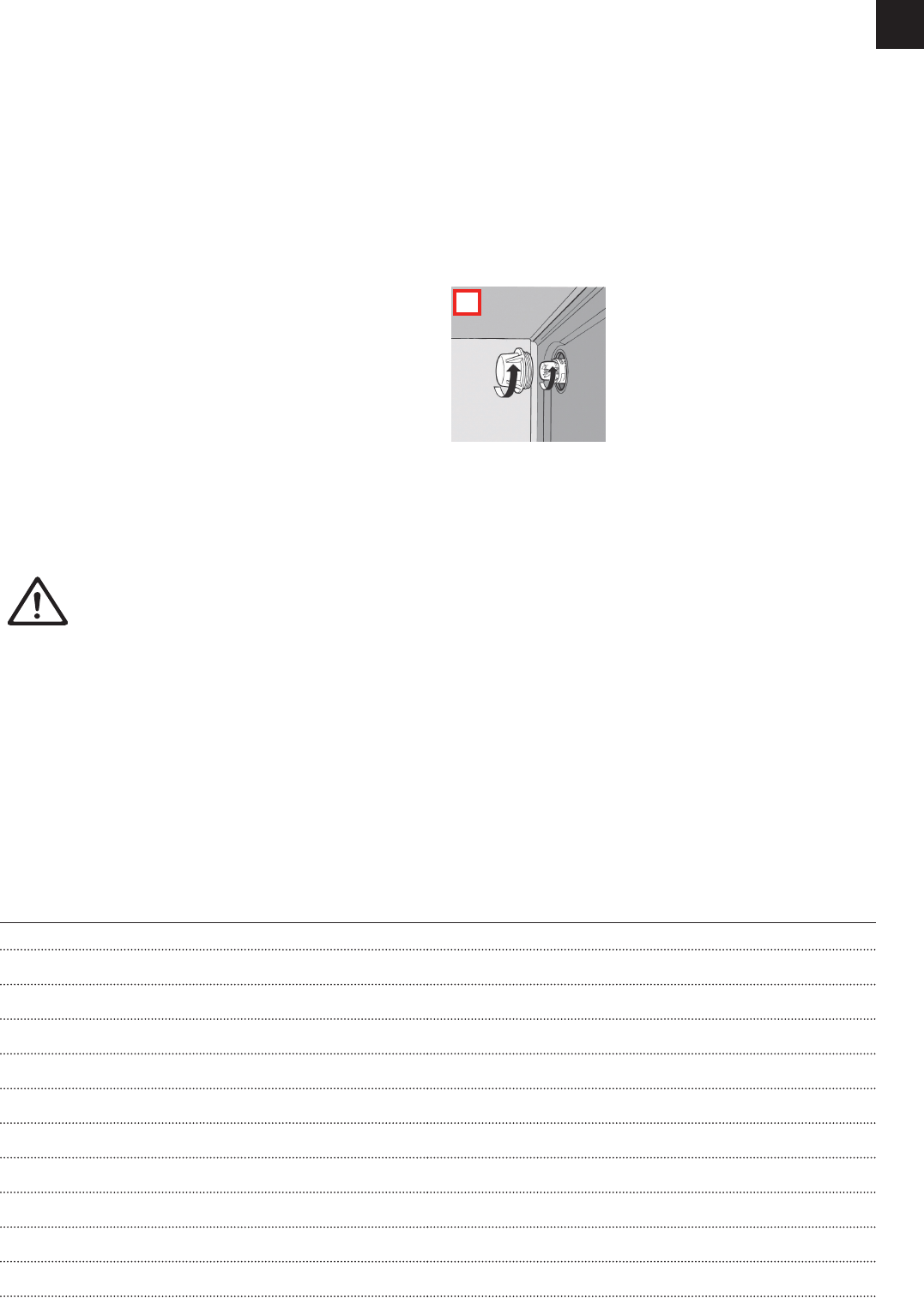

The hinges are equipped with two moveable locks

(A). Lift the lock (A) to release the hinge.



Then lift the door up and pull it outwards; to do

this, hold the door at the sides near the hinges.



To refit the door, first slide the hinges into their

grooves.



Before closing the door, remember to turn the two

locks (A) used as hinge attachments.

Refer to the pictures at the end of this manual.

Replacing the oven lamp

A

FRANKE ovens are equipped

with a circular lamp positioned in

the top left area at the back of

the compartment. To replace the

oven lamp, proceed as follows:



Turn off the power to the appliance by means of

the omnipolar switch used for connecting it to

the electrical system, or disconnect the plug if

accessible.



Unscrew the glass cover (A).



Unscrew the lamp and replace it with one

resistant to high temperatures (300 °C),

with the following characteristics:

– Voltage: 220/240 V ~ 50-60 Hz

– Power: 15 W

– Connection: (E14) small.

For models with _/F

– Power: 25 W

– Connection: G9



Refit the glass cover (A) and reconnect the power

supply.

TECHNICAL DATA

Power supply voltage and frequency 220-240 V, 50/60 Hz

Total power and fuse rating 2300 W ~ 16 A

Power and heating elements

Upper 1000 W

Lower 1250 W

Grill 2250 W

Fan 30 W

Tangential fan 15 W

Oven lamp 1 x 15 W

Oven lamp 1 x 25 W for models with _/F
