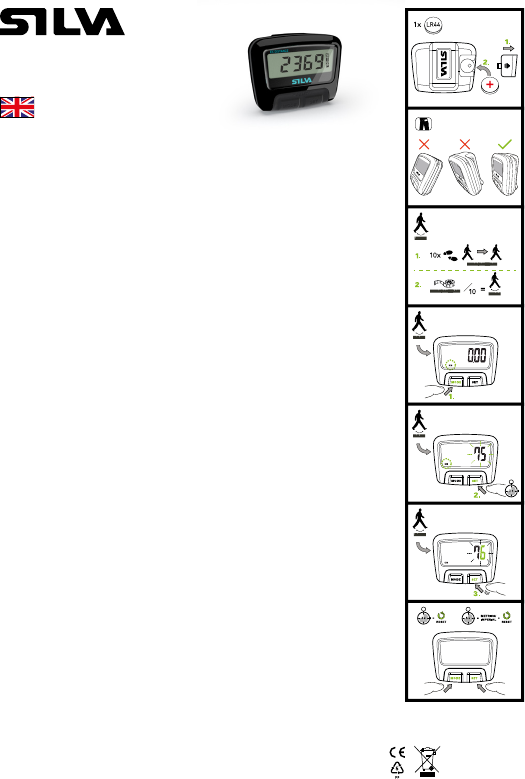

FULL VERSION MANUAL

ex distance

Art.no 56053

Congratulations to your purchase of a Silva pedometer

A pedometer is an exercise monitor that will, depending on model,

count the number of steps, calculate distance, exercise time and

calorie consumption.

GENERAL INFORMATION

The pedometer uses a pendulum to register steps. When in mo-

tion, the pendulum gives off a clicking sound. Treat your pedom-

eter carefully. It is not shock- or waterproof.

ON/OFF

Insert the battery by pulling the battery hatch outwards. Insert the

battery/batteries (1 x LR44 for ex step, ex distance and ex plus and

2 x LR44 for ex connect) and replace the battery lid.

The pedometer is not equipped with an ON-/OFF button since the

power consumption when not in use is very low.

PLACEMENT OF PEDOMETER

The pedometer should be placed in an upright position. If it leans

in any direction it may register incorrect number of steps. The

best position is on your belt at the hip.

SETTINGS:

CHANGE DISTANCE AND WEIGHT UNITS (EX DISTANCE, EX PLUS

AND EX CONNECT)

To switch between metric (kg, km and cm) and imperial (lb, miles

and feet), press and hold both buttons for 5 seconds. Note: this

will reset steps, distance and calories accumulated.

SETTING STRIDE LENGTH (EX DISTANCE, EX PLUS)

For a correct distance value, the stride length needs to be set.

How to calculate your stride length:

1. Walk 10 steps

2. Measure the distance.

3. Divide the distance by 10

4. The calculated value is your stride length.

Press MODE until “KM” or “MIL” is displayed. Press and hold SET

and the current stride length will flash. Press SET repeatedly to

increase stride length to the correct value (each press will add 1

cm or 0.1 ft).

To set a shorter stride length, add length until you pass maximum

value (240 cm/8.0 ft). The pedometer will then start from the

shortest value (30 cm/1 ft). When correct stride length is shown,

release SET and you will return to the distance menu after a few

seconds. Stride length is now set.

SETTING BODY WEIGHT (EX PLUS)

Press MODE until “CAL” is displayed. Press and hold SET and

current body weight will flash. Press SET repeatedly to increase

weight to correct value (each press will add 1 kg or 1 lb). To set a

lower body weight, add weight until you pass maximum value (135

kg or 300lb). The pedometer will then start from the lowest value

(30 kg/60 lb). When correct value is shown, release SET and you

will go back to the calorie menu after a few seconds. Body weight

is now set.

FUNCTIONS:

SHOW NUMBER OF STEPS

Press MODE until ”STEP” is displayed.

SHOW DISTANCE (EX DISTANCE, EX PLUS)

Press MODE until “KM” or “MIL” is displayed.

SHOW CALORIE CONSUMPTION (EX PLUS)

Press MODE until the text ”CAL” is displayed. Calorie consumption

is based on the intensity of your steps.

RESETTING PEDOMETER

Push both buttons for 2 seconds to reset steps, distance, calories

and timer.

SHOW EFFECTIVE WALKING/JOGGING TIME (EX PLUS)

Press MODE until ”TMR” is displayed. The timer starts automatically

when you start walking ands stops when you come to a halt.

MISCELLANEOUS:

FILTER FUNCTION

The pedometer uses a filter to prevent short involuntary move-

ments that are not part of the walk/jog. Six steps in a row need to

be taken for the pedometer to keep counting.

REPLACING BATTERY

Replace the battery when the digits in the display start to fade.

Open the battery cover by pulling it directly outwards. Change the

battery (1 x LR44) and replace the battery cover.

PROTECT THE ENVIRONMENT

All parts included in this product including batteries should be re-

cycled and must not be thrown in the regular trash. Dispose these

items in accordance with applicable local regulations.

WARRANTY

Silva warrants that, for a period of two (2) years, your Silva Prod-

uct will be substantiallyfree of defects in materials and workman-

ship under normal use. Silva’s liability under this warranty is

limited to repairing or replacing the product. This limitedwarranty

extends only to the original purchaser. If the Product proves

defective during the Warranty Period please contact the original

place of purchase. Make sure to have your proof of purchase on

hand when returning the product. Returns cannot be processed

without the original proof of purchase. This warranty does not ap-

ply if the Product has been altered, not been installed, operated,

repaired, or maintained in accordance with instructions supplied

by Silva, or has been subjected to abnormal physical or electrical

stress, misuse, negligence or accident. Neither does the war-

ranty cover normal wear and tear. Silva is not responsible for any

consequences, direct or indirect, or damage resultant from use

of this product. In no event will Silva’s liability exceed the amount

paid by you for the product. Some jurisdictions do not allow the

exclusion or limitation of incidental or consequential damages,

so the above limitation or exclusion may not apply to you. This

Warranty is valid and may be processed only in the country of

purchase. For more information please visit www.silva.se
