Operating conditions

WH-UD series WH-UX series, WH-UQ series

*

1

COOLING

(CIRCUIT)

HEATING

(TANK)

HEATING

(CIRCUIT)

HEATING

(TANK)

HEATING

(CIRCUIT)

Water outlet temperature (°C)

(Min. / Max.)

- / 65* 20 / 55 - / 65*

20 / 55 (Below Ambient -15 °C) *

3

20 / 60 (Above Ambient -10 °C) *

3

5 / 20

Outdoor ambient temperature (°C)

(Min. / Max.)

-20 / 35 -28 / 35 16 / 43

When the outdoor temperature is out of the range in the table, the heating capacity will drop signifi cantly and the outdoor unit may

stop operating for its protection.

The unit will restart automatically after the outdoor temperature returns to the specifi ed range.

* Above 55 °C, only possible with backup heater operation.

*

3

Between outdoor ambient -10 °C and -15 °C, the water outlet temperature gradually decreases from 60 °C to 55 °C.

3

Before use, make sure the system has been installed correctly by an

authorised dealer according to the given instructions.

• Panasonic Air-to-Water is a split system, consisting of two units: indoor and outdoor units. The indoor unit consist of the

hydromodule and 200L sanitary water tank.

• These operating instructions describe how to operate the system using the indoor and outdoor units.

• As for the operation of other products such as radiator, external thermo controller, and underfl oor units, refer to the operating

instructions of each product.

• System could be locked to operate in HEAT mode and disable COOL mode.

• Some functions described in this manual may not be applicable to your system.

• Must use water that complies with European water quality standard 98/83 EC. The lifespan of the Tank Unit will be shorter if

groundwater (include spring water and well water) is used.

• The Tank Unit shall not be used with the tap water containing contaminants such as salt, acid, and other impurities which may

corrode the tank and its component.

• Consult your nearest authorised dealer for further information.

*¹ The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised service

partners.

*² Only displayed when COOL mode is unlocked (This means when COOL mode is available)

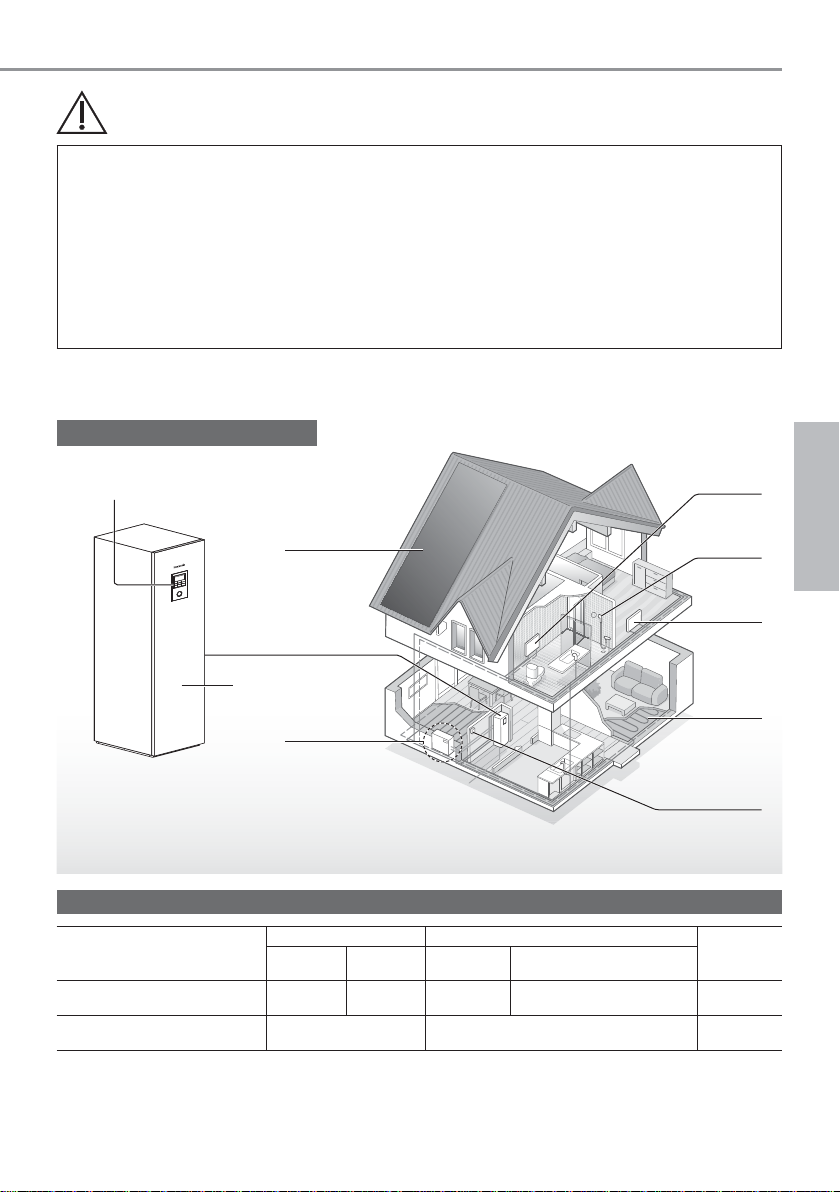

System overview

Radiator

Shower

Fan Coil

Unit

Floor

Heating

Outdoor Unit

Solar Panel

Power Supply

The illustrations in this manual are for explanation purposes only and may differ from the actual unit.

They are subject to change without notice for future improvement.

Note:

Not recommended to open the Front Plate.

(For authorised dealer/specialist use only)

Indoor Unit

Remote Controller

Front Plate
