Electrical connection

!

The electrical connection for the hob and for any built-

in oven must be carried out separately, both for safety

purposes and to make extracting the oven easier.

Single-phase connection

The hob is equipped with a pre-connected electricity supply

cable, which is designed for single-phase connection.

Connect the wires in accordance with the instructions given

in the following table and diagrams:

Other types of connection

If the mains supply corresponds with one of the following:

Voltage and mains frequency

• 400V - 2+N ~ 50/60 Hz

• 220-240V 3 ~ 50/60 Hz

Separate the wires and connect them in accordance with

the instructions given in the following table and diagrams:

Connecting the electricity supply cable to the mains

If the appliance is being connected directly to the electricity

mains an omnipolar switch must be installed with a minimum

opening of 3 mm between contacts.

!

The installer must ensure that the correct electrical

connection has been made and that it is fully compliant

with safety regulations.

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4 alignment

springs in the holes provided at the central point of each

side of the hob.

2. Place the hob in the cavity, make sure it is in a central

position and push down on the whole perimeter until the

hob is stuck to the supporting surface.

!

The screws for the alignment springs must remain

accessible.

!

In order to adhere to safety standards, the appliance

must not come into contact with electrical parts once it

has been installed.

!

All parts which ensure the safe operation of the

appliance must not be removable without the aid of a tool.

Start-up and use

!

The glue applied on the gaskets leaves traces of grease

on the glass. Before using the appliance, we recommend

you remove these with a special non-abrasive cleaning

product. During the first few hours of use there may be a

smell of rubber which will disappear very quickly.

!

A few seconds after the hob is connected to the electricity

supply, a buzzer will sound. The hob may now be switched

on.

Types of noise during normal hob operation:

• Buzz: due to the vibration of the metallic parts that

make up the induction element and the pot; it is

generated by the electromagnetic field required for

heating and increases as the power of the induction

element increases.

• Soft whistle: heard when the pot placed on the heating

zone is empty; the noise disappears once food or water

is placed into the pot.

• Crackle: produced by the vibration of materials on the

bottom of the pot due to the flow of parasitic currents

caused by electromagnetic fields (induction); can be

more or less intense depending on the material making

up the bottom of the pot, and decreases as the pot

dimensions increase.

Before connecting the appliance to the power supply, make

sure that:

• The appliance is earthed and the plug is compliant with

the law.

• The socket can withstand the maximum power of the

appliance, which is indicated on the data plate located

on the appliance itself.

• The voltage falls within the range of values indicated on

the data plate.

• The socket is compatible with the plug of the appliance. If

the socket is incompatible with the plug, ask an authorised

technician to replace it. Do not use extension cords or

multiple sockets.

!

Once the appliance has been installed, the power supply

cable and the electrical socket must be easily accessible.

!

The cable must not be bent or compressed.

!

The cable must be checked regularly and replaced by

authorised technicians only.

!

The manufacturer declines any liability should these

safety measures not be observed.

! Do not remove or replace the power supply cable for any

reason. Its removal or replacement will void the warranty

and the CE marking. INDESIT does not assume liability for

accidents or damage arising from replacement/removal

of the original power supply cable. Replacement can only

be accepted when carried out by personnel authorised

by INDESIT and using an original spare part.

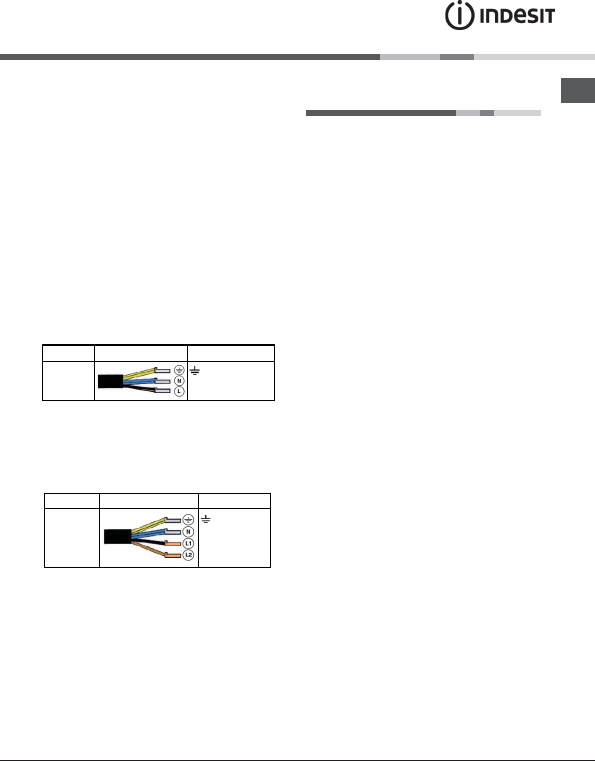

Voltage and

mains frequency

Electrical cable Wire connection

220-240V 1+N ~

50/60 Hz

: yellow/green

N

: the two blue wires together

L

: brown and black together

Voltage and

mains frequency

Electrical cable Wire connection

400V - 2+N ~

50/60 Hz

220-240V 3 ~

50/60 Hz

: yellow/green;

N: the two blue wires

together

L1: black

L2: brown
