READ THE INSTRUCTIONS BOOKLET CAREFULLY TO MAKE THE MOST OF YOUR HOB.

We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number

in case you need to get help from the after sales service.

1. GENERAL WARNINGS

We are constantly striving to improve product quality and as such may modify appliances to incorporate the latest technical improvements.

Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and

subsequent amendments.

Installing a domestic appliance can be a complicated operation which if not carried out correctly, can seriously affect consumer

safety. It is for this reason that the task should be undertaken by a professionally qualified person who will carry it out in

accordance with the technical regulations in force. In the event that this advice is ignored and the installation is carried out

by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product whether or not

it results in damage to goods or injury to individuals.

3. BUILT-IN

The furniture in which your hob will be installed and all adjacent

furniture, should be made from materials that can withstand high

temperatures. In addition, all decorative laminates should be fixed

with heat-resistant glue.

Installation (Fig. B / D):

• A watertight seal is supplied with the hob.

Before fitting:

- turn the hob upside down, with the glass surface facing downwards.

Make sure the glass is protected.

- fit the seal round the hob.

- make sure that it is correctly fitted to avoid any leakage into the

supporting cabinet.

• Leave a gap of at least 5 cm between the appliance and the

vertical sides of the adjacent furniture.

• If, when installing the hob, the lower hob face is adjacent to an

area normally accessible when handling or cleaning, fit a partition

1 cm below the base of the hob to avoid any risk of scorching

or damage.

2. INSTALLATION

"The installation must conform to the standard directives."

The manufacturer declines all responsibility for any damage that

may be caused by unsuitable or unreasonable use.

Warning:

we cannot be held responsible for any incident or its

consequences that may arise during the use of an appliance

not linked to the earth, or linked to an earth whose continuity

is defective.

• Always check before any electrical operation, the supply tension

shown on the electricity meter, the adjustment of the circuit-

breaker, the continuity of the connection to earth to the installation

and that the fuse is suitable.

• The electrical connection to the installation should be made via

a socket with a plug with earth, or via an omnipole cut-out switch.

If the appliance has a socket outlet, it must be installed so that

the socket outlet is accessible.

• The yellow/green wire of the power supply cable must be

connected to the earth of both power supply and appliance

terminals.

• Any queries regarding the power supply cord should be referred

to After Sales Service or a qualified technician.

4. ELECTRICAL CONNECTION

SHUNT

The hob is fitted with a power supply cord which allows it to be

connected only to a power supply of 220-240 V between phases

or between phase and neutral.

• Connect to a socket, to choose the correct fuse, you must

refer on the table.

It is however possible to connect the hob to :

. Three phase 220-240 V3~

. Three phase 380-415 V2N~

To proceed to the new connection, you must adhere the

following instructions.

• Before making the connection, make sure that the installation

is protected by a suitable fuse, see table, and that it is fitted with

wires of a large enough section to supply the appliance normally.

• Turn over the hob, glass side against the work top, taking care

to protect the glass.

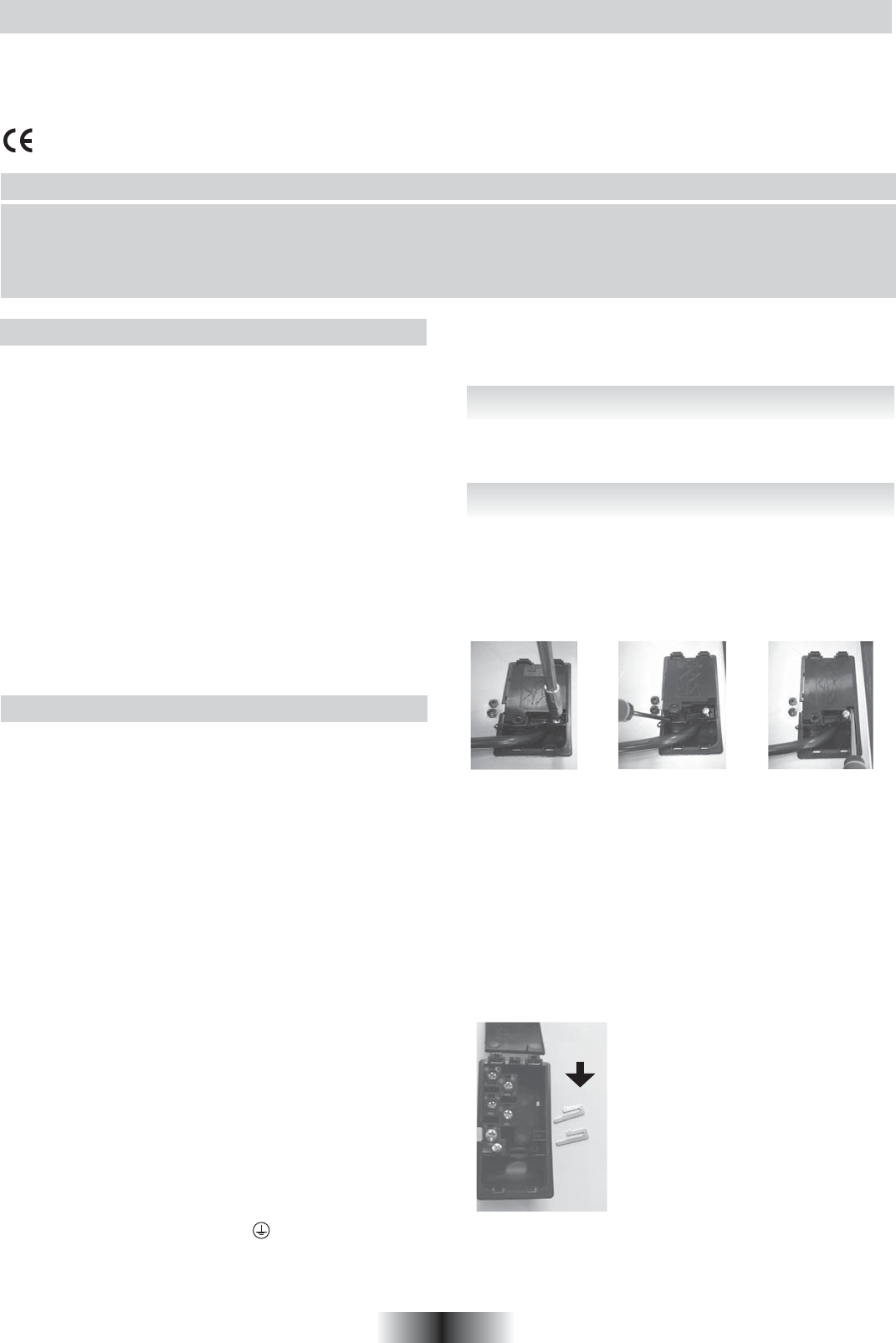

• Open the cover in the following sequence:

1 2 3

• unscrew the cable clamp "1",

• find the two tabs located on the sides,

• put the blade of a flat screw-driver in front of each tab "2" e "3",

push in and press,

• remove the cover.

To release the power supplying cord.

• remove the screws retaining the terminal block which contains

the shunt bars and the conductors of the supply cord,

• Pull out the supply cord.

• Operations to be carried out to make a new connection :

- Choose the power supply cable in accordance with the

recommendations in the table.

- Pass the power supply cable into the clamp.

- Strip the end of each conductor of

the supply cord on a 10 mm length,

by taking in account the requested

length of the cord for the connection

to the terminal block.

- According to the installation

and with the help of shunt bars which

you should have recovered in the

first operation, fix the conductor as

shown on the chart.

- Fix the cover.

- Screw the cable clamp.

Note: make sure the terminal board screws are tight.

7 GB-IE

ATTENTION:

should it be necessary to replace the supply cord, connect the

wire in accordance with the following colours/codes:

BLUE - NEUTRAL (N)

BROWN - LIVE (L)

YELLOW-GREEN - EARTH ( )
